General requirements

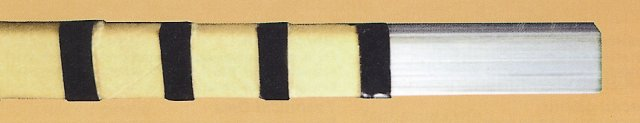

Kraft paper insulated rectangular aluminium wires.

Applications

For coils of electrical machinery and apparatus with thermal class 155 and class 180. Minimum storage temperature minus 60°C.

Standards

BDS 6296-80

Technical Data

• Nominal dimensions Thickness: 2.00 mm ÷ 7.00 mm
  Width: 4.00 mm ÷ 20.00 mm
• Type of Insulation Kraft paper width thickness 0.05 mm, 0.06 mm or 0.08 mm.
  Increase in dimensions due to the paper tape covering can be from 0.50 mm up to 3.00 mm.
• Thermal class 90° (In impregnated or washed condition with electroisolating varnish or oil these wires are assigned to heat-resistance 105).
• Flexibility Bending at 180°C around mandrel diameter ø100 mm.
• Packing: on drums
