General requirements

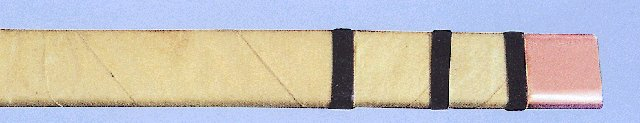

Kraft paper insulated rectangular copper wires.

Applications

For coils of oil transformers, generators and other electrical machinery and apparatus.

Standards

BDS EN 60317-27, IEC 60317-27

Technical Data

• Nominal dimensions thickness: 1.00 mm ÷ 7.00 mm
  width: 4.00 mm ÷ 20.00 mm
• Type of Insulation Kraft paper with thickness 0.05 mm, 0.06 mm or 0.08 mm.
  Increase in dimensions due to the paper tape covering can be from 0.30 mm up to 3.00 mm.

  Increase in dimensions due to the paper covering
  0.50 mm	10%
  0.50 mm ÷ 1.25 mm	7.5%
  over 1.25 mm	5%

• Thermal class 90° (In impregnated or washed condition with electro isolating varnish or
  oil these wires are assigned to heat-resistance 105).
• Flexibility Bending through 180° around mandrel diameter 10 times the nominal thickness and 15 times nominal width of the conductor (under negotiation with the buyer).
• Packing: on drums
